Ball Bearings 101
Ball bearings are rolling element bearings that use steel balls to separate the inner and outer races. That separation reduces friction between a rotating shaft and its housing. The balls roll, the races stay aligned, and the movement stays smooth.
There are two kinds of friction: sliding and rolling. Sliding friction happens when two surfaces scrape against each other, and heat builds fast, and wear follows.
Rolling friction controls those contact points. In a ball bearing, the raceway grooves align perfectly with the steel balls, stopping the races from sliding against each other. Heat dissipates. Wear slows. Efficiency stays high.
Key Components & Design Elements of the Ball Bearing
The defining trait of a ball bearing is its ability to stay cool and reduce friction under heavy loads. Every part is built with that goal in mind.
- Inner & Outer Bearing Races – The two metal rings that form the structure. The grooves inside guide the balls for smooth, low-friction rotation.
- Chrome Steel Balls – They separate the races and take the load. Size, number, and placement determine how much weight and speed the bearing can handle.
- Bearing Cage – A thin guide, metal or polymer, that keeps the balls spaced correctly and prevents unnecessary contact.
- Material Composition – Balls and races are made from premium materials for durability and resistance to corrosion.
- Raceway Grooves – Precisely machined channels that control how the balls move and carry load.
Types of Ball Bearings
Ball bearings come in multiple designs, each tuned for specific loads, speeds, and jobs.

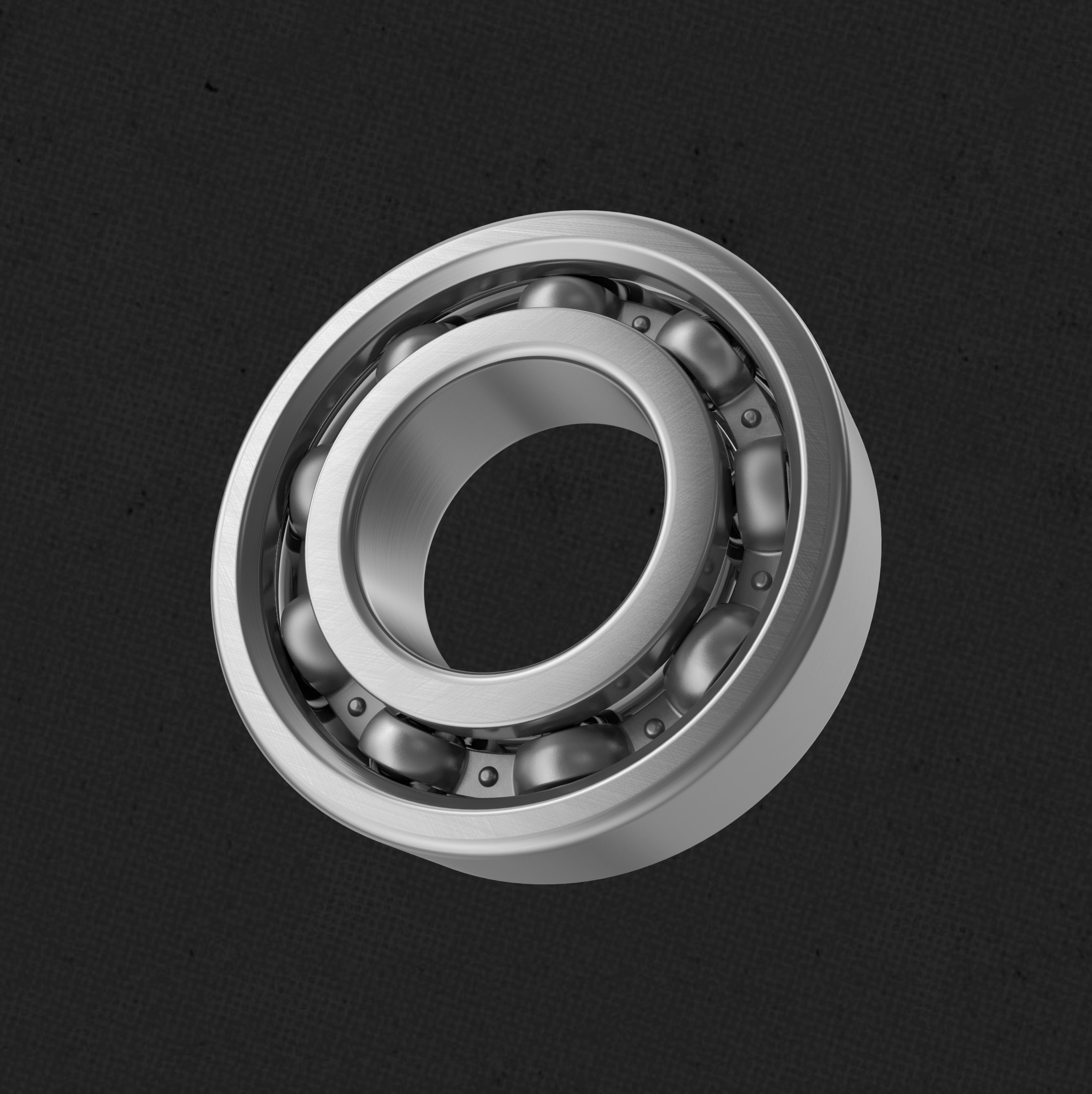

Deep Groove Ball Bearing
The most common and for good reason. Deep groove bearings are durable, efficient, and versatile. The deeper grooves in both races create more contact points per ball, increasing load capacity and reliability.
Key Features
- Deep Grooves: More contact points mean greater load capacity.
- Versatile Load: Handles radial and moderate axial loads with ease.
- High-Speed Capabilities: Built for speed without sacrificing performance.
- Low Maintenance: Minimal upkeep thanks to reduced friction and wear.
- Alignment: Requires proper alignment for optimal results.
Angular Contact Ball Bearing
Instead of deep grooves, angular contact bearings feature slanted raceways. This offset design allows them to handle combined loads, both radial and axial, at high speeds.
Key Features & Advantages
- Angled Raceways: Supports axial loads in one direction.
- High Combined Load Capacity: Handles radial and axial at the same time.
- Single or Double Row Options: One direction or both, depending on the setup.
- High-Speed Capability: Performs under fast, demanding conditions.
- Enhanced Rigidity: Stability under dynamic loads.
- Reduced Misalignment Tolerance: Precision alignment required.
- Preload Capability: Can be preloaded to improve rigidity and reduce vibration.
- Typical Applications: Machine tools, gearboxes, pumps, motors.
Thrust Ball Bearings
Thrust ball bearings are built for axial loads and stress that runs along the shaft. They’re not made for radial work but excel where axial support matters, like steering systems.
Key Features
- Axial Load Capacity: Purpose-built for axial loads.
- Flat Raceways: Allows smooth rotation.
- Two-Part Design: Shaft washer, housing washer, and ball assembly.
- Single and Double Direction Types: Handles axial loads one way or both.
- Smooth Operation: Consistent, stable movement.
- Space-Saving Design: Compact and efficient.
Industries & Applications
The “Working Class” Bearing
The deep groove ball bearing earns its “working class” name by doing the hard jobs, day in, day out. Durable. Versatile. Reliable. From vehicle engines to home appliances, deep groove ball bearings keep the machines that keep life moving.
At EBT, we know what that means. These bearings keep production lines running, trucks moving, and equipment working affordably and reliably, for the people who depend on them most.
Engineered Bearing Technology
Masters of Versatility, Quality & Efficiency
EBT ball bearings balance efficiency, versatility, and dependability. From automotive to industrial to household use, these bearings deliver consistent performance across the board.
With a rugged design, wide load capacity, and low-maintenance operation, ball bearings are the solution when precision and durability can’t be compromised.
Contact us today for a consultation, request a quote, or check what we have in stock. EBT will deliver. Start the conversation now.
